Deploying YDB cluster with Ansible

This guide outlines the process of deploying a YDB cluster on a group of servers using Ansible. The recommended setup to get started is 3 servers with 3 disk drives for user data each. For reliability purposes each server should have as independent infrastructure as possible: they'd better be each in a separate datacenter or availability zone, or at least in different server racks.

For large-scale setups, it is recommended to use at least 9 servers for highly available clusters (mirror-3-dc) or 8 servers for single-datacenter clusters (block-4-2). In these cases, servers can have only one disk drive for user data each, but they'd better have an additional small drive for the operating system. You can learn about redundancy models available in YDB from the YDB cluster topology article. During operation, the cluster can be expanded without suspending user access to the databases.

Download the GitHub repository with examples for installing YDB cluster – git clone https://github.com/ydb-platform/ydb-ansible-examples.git. This repository contains a few installation templates for deploying YDB clusters in subfolders, as well as scripts for generating TLS certificates and requirement files for installing necessary Python packages. In this article, we'll use the 3-nodes-mirror-3-dc subfolder for the most simple setup. Alternatively, you can similarly use 8-nodes-block-4-2 or 9-nodes-mirror-3-dc if you have the necessary number of suitable servers.

├── 3-nodes-mirror-3-dc / 9-nodes-mirror-3-dc / 8-nodes-block-4-2
│   ├── ansible.cfg # An Ansible configuration file containing settings for connecting to servers and project structure options. It is essential for customizing Ansible's behavior and specifying default settings.
│   ├── ansible_vault_password_file # A file containing the password for decrypting encrypted data with Ansible Vault, such as sensitive variables or configuration details. This is crucial for securely managing secrets like the root user password.
│   ├── creds # A directory for environment variables that specify the username and password for YDB, facilitating secure access to the database.
│   ├── files
│   │   ├── config.yaml # A YDB configuration file, which contains settings for the database instances.
│   ├── inventory # A directory containing inventory files, which list and organize the servers Ansible will manage.
│   │   ├── 50-inventory.yaml # The main inventory file, specifying the hosts and groups for Ansible tasks.
│   │   └── 99-inventory-vault.yaml #  An encrypted inventory file storing sensitive information, such as the root user's password for YDB, using Ansible Vault.
├── README.md # A markdown file providing a description of the repository, including how to use it, prerequisites, and any other relevant information.
├── requirements.txt # A file listing Python package dependencies required for the virtual environment, ensuring all necessary tools and libraries are installed.
├── requirements.yaml # Specifies the Ansible collections needed, pointing to the latest versions or specific versions required for the project.
├── TLS #A directory intended for storing TLS (Transport Layer Security) certificates and keys for secure communication.
│   ├── ydb-ca-nodes.txt # Contains a list of Fully Qualified Domain Names (FQDNs) of the servers for which TLS certificates will be generated, ensuring secure connections to each node.
│   └── ydb-ca-update.sh # A script for generating TLS certificates from the ydb-ca-nodes.txt list, automating the process of securing communication within the cluster.

To work with the project on a local (intermediate or installation) machine, you will need: Python 3 version 3.10+ and Ansible core version 2.15.2 or higher. Ansible can be installed and run globally (installed in the system) or in a virtual environment. If Ansible is already installed – you can move on to the step "Configuring the Ansible project"; if Ansible is not yet installed, install it using one of the following methods:

Navigate to the root directory of the downloaded repository and execute the command ansible-galaxy install -r requirements.yaml – this will download the Ansible collections ydb_platform.ydb and community.general, which contain roles and plugins for installing YDB.

Configure the Ansible project

Edit the inventory files

Regardless of the chosen cluster topology (3-nodes-mirror-3-dc, 9-nodes-mirror-3-dc, or 8-nodes-block-4-2), the main parameters for installing and configuring YDB are contained in the inventory file 50-inventory.yaml, which is located in the inventory/ directory.

In the inventory file 50-inventory.yaml, you need to specify the current list of FQDNs of the servers where YDB will be installed. By default, the list appears as follows:

all:
  children:
    ydb:
      static-node-1.ydb-cluster.com:
      static-node-2.ydb-cluster.com:
      static-node-3.ydb-cluster.com:

Next, you need to make the following changes in the vars section of the inventory file:

• ansible_user – specify the user for Ansible to connect via SSH.

• ansible_ssh_common_args: "-o ProxyJump=<ansible_user>@<static-node-1-IP>" – option for connecting Ansible to a server by IP, from which YDB will be installed (including ProxyJump server). It is used when installing YDB from a local machine not included in the private DNS zone.

• ansible_ssh_private_key_file – change the default private SSH-key path to the actual one: "../<ssh-private-key-name>".

• Choose one of the available options for deploying YDB executables:

  • ydb_version: automatically download one of the YDB official releases by version number. For example, 23.4.11.
  • ydb_git_version: automatically compile the YDB executables from the source code, downloaded from the official GitHub repository. The setting's value is a branch, tag, or commit name. For example, main.
  • ydb_archive: a local filesystem path for a YDB distribution archive downloaded or otherwise prepared in advance.
  • ydbd_binary and ydb_cli_binary: local filesystem paths for YDB server and client executables, downloaded or otherwise prepared in advance.

Optional changes in the inventory files

Feel free to change these settings if needed, but it is not necessary in straightforward cases:

• ydb_cores_static – set the number of CPU cores allocated to static nodes.

• ydb_cores_dynamic – set the number of CPU cores allocated to dynamic nodes.

• ydb_tls_dir – specify a local path to a folder with TLS certificates prepared in advance. It must contain the ca.crt file and subdirectories with names matching node hostnames, containing certificates for a given node. If omitted, self-signed TLS certificates will be generated automatically for the whole YDB cluster.

• ydb_brokers – list the FQDNs of the broker nodes. For example:

  ydb_brokers:
      - static-node-1.ydb-cluster.com
      - static-node-2.ydb-cluster.com
      - static-node-3.ydb-cluster.com


The value of the ydb_database_groups variable in the vars section has a fixed value tied to the redundancy type and does not depend on the size of the cluster:

• For the redundancy type block-4-2, the value of ydb_database_groups is seven.
• For the redundancy type mirror-3-dc, the value of ydb_database_groups is eight.

The values of the system_timezone and system_ntp_servers variables depend on the infrastructure properties where the YDB cluster is being deployed. By default, system_ntp_servers includes a set of NTP servers without considering the geographical location of the infrastructure on which the YDB cluster will be deployed. We strongly recommend using a local NTP server for on-premise infrastructure and the following NTP servers for cloud providers:

No changes to other sections of the 50-inventory.yaml configuration file are required.

Changing the root user password

Next, you can change the standard YDB root user password contained in the encrypted inventory file 99-inventory-vault.yaml and in the file ansible_vault_password_file.txt. To change the password – specify the new password in the ansible_vault_password_file.txt file and duplicate it in the 99-inventory-vault.yaml file in the format:

all:
  children:
    ydb:
      vars:
        ydb_password: <new-password>

To encrypt 99-inventory-vault.yaml, execute the command ansible-vault encrypt inventory/99-inventory-vault.yaml.

After modifying the inventory files, you can proceed to prepare the YDB configuration file.

Prepare the YDB configuration file

The YDB configuration file contains the settings for YDB nodes and is located in the subdirectory /files/config.yaml. A detailed description of the configuration file settings for YDB can be found in the article YDB cluster configuration.

The default YDB configuration file already includes almost all the necessary settings for deploying the cluster. You need to replace the standard FQDNs of hosts with the current FQDNs in the hosts and blob_storage_config sections:

• hosts section:

  ...
  hosts:
  - host: static-node-1.ydb-cluster.com
    host_config_id: 1
    walle_location:
      body: 1
      data_center: 'zone-a'
      rack: '1'
  ...


• blob_storage_config section:

  ...
  - fail_domains:
      - vdisk_locations:
        - node_id: static-node-1.ydb-cluster.com
          pdisk_category: SSD
          path: /dev/disk/by-partlabel/ydb_disk_1
  ...


The rest of the sections and settings in the configuration file can remain unchanged.

Deploying the YDB cluster

The repository contains two ready sets of templates for deploying a YDB cluster of eight (redundancy model block-4-2) and nine servers (mirror-3-dc). Both options can be scaled to any required number of servers, considering a number of technical requirements.

To prepare your template, you can follow the instructions below:

1. Create a copy of the directory with the ready example (3-nodes-mirror-3-dc, 9-nodes-mirror-3-dc, or 8-nodes-block-4-2).
2. Specify the FQDNs of the servers in the file TLS/ydb-ca-nodes.txt and execute the script ydb-ca-update.sh to generate sets of TLS certificates.
3. Change the template's inventory files according to the instructions.
4. Make changes to the YDB configuration file according to the instructions.
5. In the directory of the cloned template, execute the command ansible-playbook ydb_platform.ydb.initial_setup.

Installation script execution plan for YDB

The sequence of role executions and their brief descriptions:

1. The packages role configures repositories, manages APT preferences and configurations, fixes unconfigured packages, and installs necessary software packages depending on the distribution version.
2. The system role sets up system settings, including clock and timezone configuration, time synchronization via NTP with systemd-timesyncd, configuring systemd-journald for log management, kernel module loading configuration, kernel parameter optimization through sysctl, and CPU performance tuning using cpufrequtils.
3. The ydb role performs tasks related to checking necessary variables, installing base components and dependencies, setting up system users and groups, deploying and configuring YDB, including managing TLS certificates and updating configuration files.
4. The ydb-static role prepares and launches static nodes of YDB, including checking necessary variables and secrets, formatting and preparing disks, creating and launching systemd unit for the storage node, as well as initializing the storage and managing database access.
5. The ydb-dynamic role configures and manages dynamic nodes of YDB, including checking necessary variables, creating configuration and systemd unit files for each dynamic node, launching these nodes, obtaining a token for YDB access, and creating a database in YDB.

As a result of executing the playbook, a YDB cluster will be created, with a test database named database, a root user with maximum access rights created, and Embedded UI running on port 8765. To connect to the Embedded UI, you can set up SSH tunneling. For this, execute the command ssh -L 8765:localhost:8765 -i <ssh private key> <user>@<first-ydb-static-node-ip> on your local machine. After successfully establishing the connection, you can navigate to the URL localhost:8765:

Monitoring the cluster state

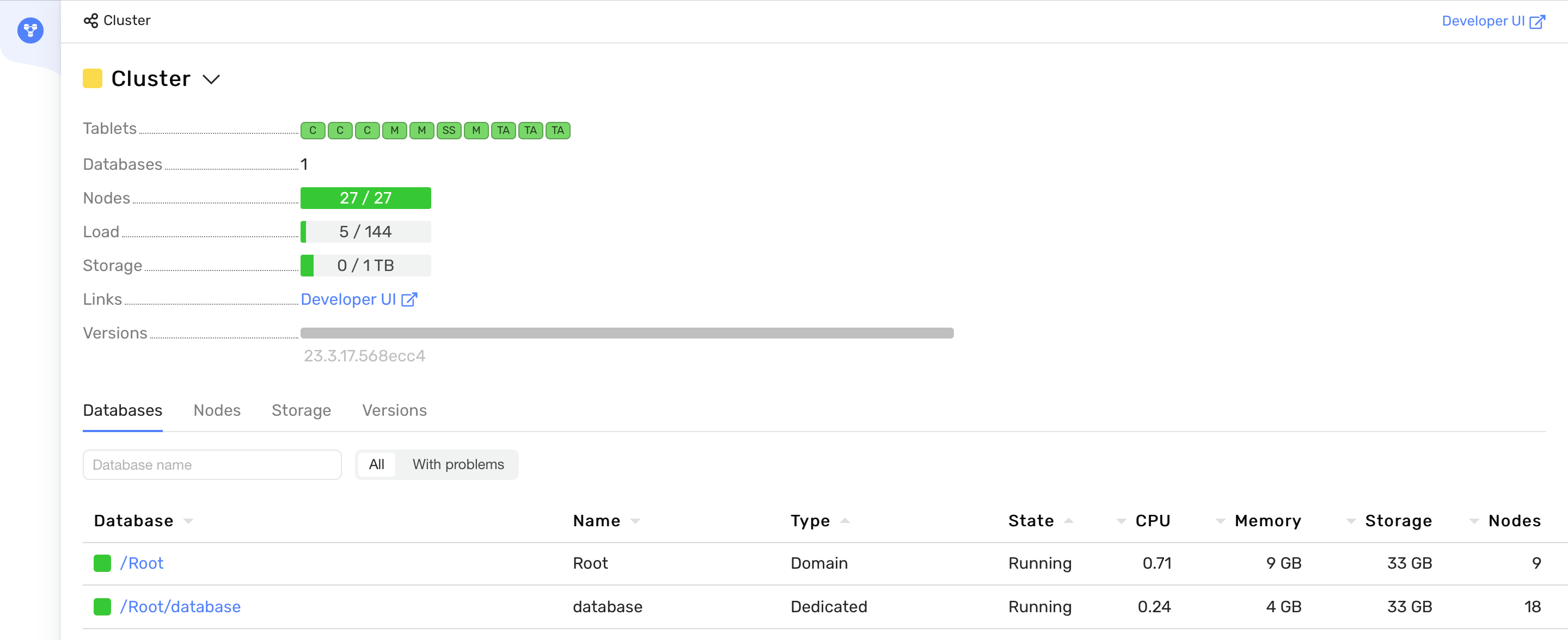

After successfully creating the YDB cluster, you can check its state using the Embedded UI – http://localhost:8765/monitoring/cluster/tenants:

This section displays the following parameters of the YDB cluster, reflecting its state:

• Tablets – a list of running tablets. All tablet state indicators should be green;
• Nodes – the number and state of static and dynamic nodes launched in the cluster. The node state indicator should be green, and the ratio of created to launched nodes should be equal. For example, 27/27 for a nine-node cluster.

The Load indicators (amount of RAM used) and Storage (amount of disk space used) should also be green.

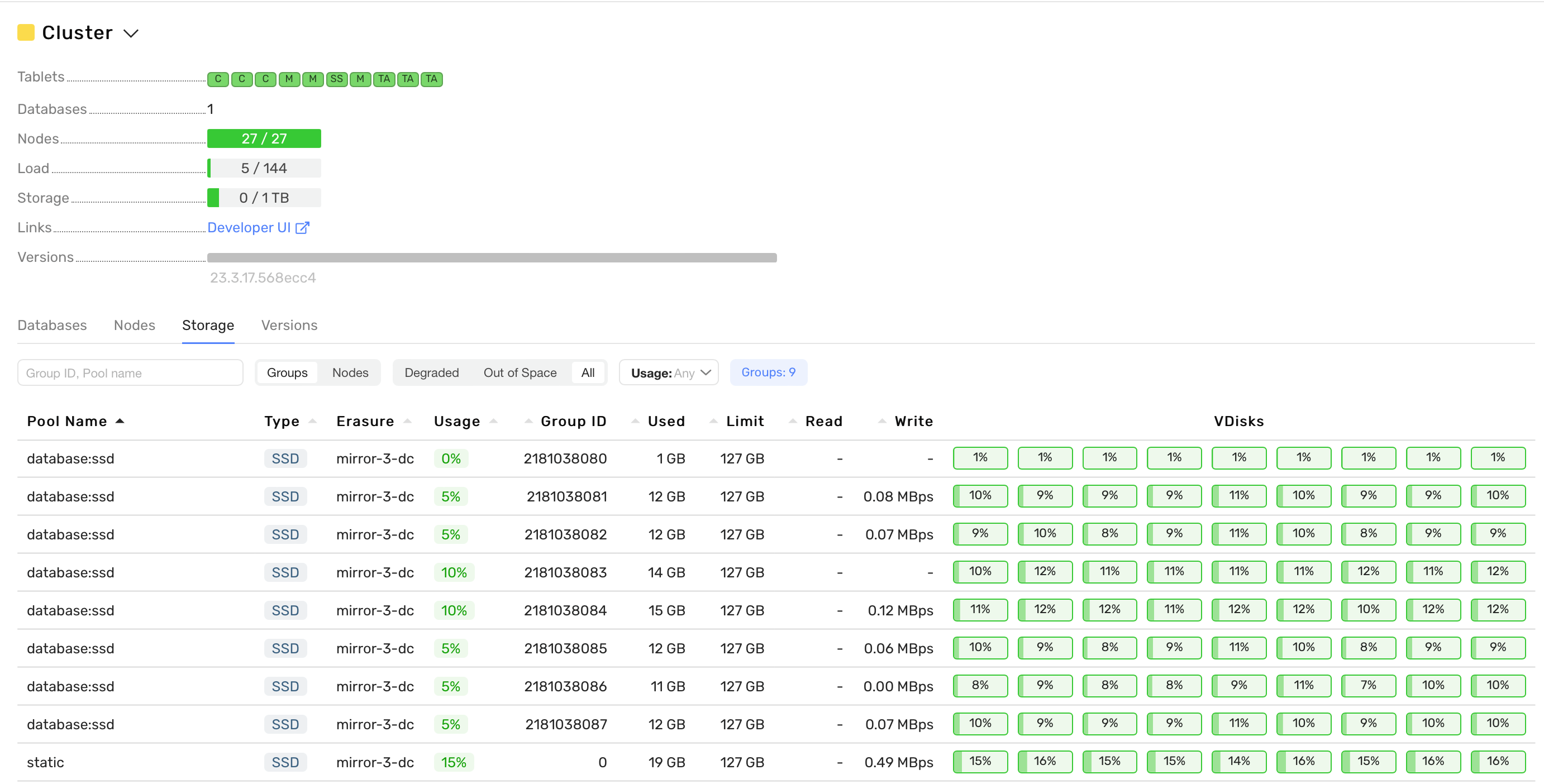

You can check the state of the storage group in the storage section – http://localhost:8765/monitoring/cluster/storage:

The VDisks indicators should be green, and the state status (found in the tooltip when hovering over the Vdisk indicator) should be Ok. More about the cluster state indicators and monitoring can be read in the article YDB Monitoring.

Cluster Testing

You can test the cluster using the built-in load tests in YDB CLI. To do this, download YDB CLI version 2.5.0 to the machine where Ansible is installed. For example, using wget: wget https://storage.yandexcloud.net/yandexcloud-ydb/release/2.5.0/linux/amd64/ydb.

Make the downloaded binary file executable – chmod +x ydb and execute the connection check command:

./ydb \
config profile create <profile name> \
-d /Root/database \
-e grpcs://< FQDN node >:2135 \
--ca-file <path to generated certs>/CA/certs/ca.crt \
--user root \
--password-file <path to vault password file>/ansible_vault_password_file

Command parameters and their values:

• config profile create – This command is used to create a connection profile. You specify the profile name. More detailed information on how to create and modify profiles can be found in the article Creating and updating profiles.
• -e – Endpoint, a string in the format protocol://host:port. You can specify the FQDN of any cluster node and omit the port. By default, port 2135 is used.
• --ca-file – Path to the root certificate for connections to the database using grpcs. The certificate is created by the ydb-ca-update.sh script in the TLS directory and is located at the path TLS/CA/certs/ relative to the root of the ydb-ansible-examples repository.
• --user – The user for connecting to the database. By default, the user root is created when executing the ydb_platform.ydb.initial_setup playbook.
• --password-file – Path to the password file. In each folder with a YDB cluster deployment template, there is an ansible_vault_password_file that contains the password for the user root.

You can check if the profile has been created using the command ./ydb config profile list, which will display a list of profiles. After creating a profile, you need to activate it with the command ./ydb config profile activate <profile name>. To verify that the profile has been activated, you can rerun the command ./ydb config profile list – the active profile will have an (active) mark.

To execute a YQL query, you can use the command ./ydb yql -s 'select 1;', which will return the result of the select 1 command in table form to the terminal. After checking the connection, you can create a test table with the command:
./ydb workload kv init --init-upserts 1000 --cols 4. This will create a test table kv_test consisting of 4 columns and 1000 rows. You can verify that the kv_test table was created and filled with test data by using the command ./ydb yql -s 'select * from kv_test limit 10;'.

The terminal will display a table of 10 rows. Now, you can perform cluster performance testing. The article Key-Value load describes 5 types of workloads (upsert, insert, select, read-rows, mixed) and the parameters for their execution. An example of executing the upsert test workload with the parameter to print the execution time --print-timestamp and standard execution parameters is: ./ydb workload kv run upsert --print-timestamp.

A report of the following type will be displayed in the terminal:

Window Txs/Sec Retries Errors  p50(ms) p95(ms) p99(ms) pMax(ms)        Timestamp
1          727 0       0       11      27      71      116     2024-02-14T12:56:39Z
2          882 0       0       10      21      29      38      2024-02-14T12:56:40Z
3          848 0       0       10      22      30      105     2024-02-14T12:56:41Z
...

After completing the tests, the kv_test table can be deleted with the command: ./ydb workload kv clean. More details on the options for creating a test table and tests can be read in the article Key-Value load.
