Deploy infrastructure for YDB cluster using Terraform

You can deploy a YDB cluster for production use in three recommended ways: using Ansible, Kubernetes or manually. While the Kubernetes option is almost self-sufficient, the Ansible and manual options require SSH access to properly configured servers or virtual machines.

This article describes how to create and configure the necessary set of virtual machines in various cloud providers for a YDB cluster, using Terraform.

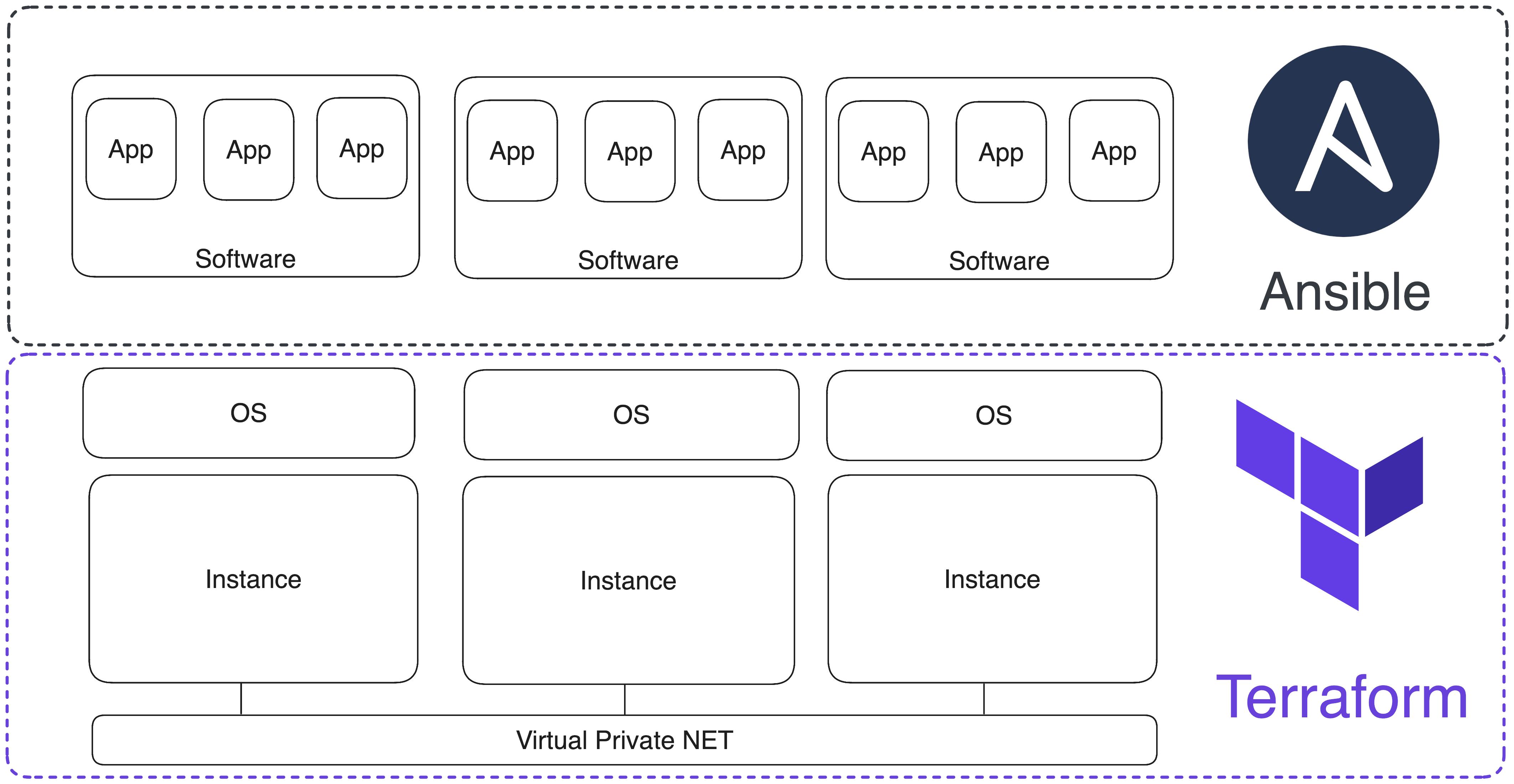

Terraform is an open-source infrastructure management software based on the "Infrastructure as Code" model. The same approach is used in Ansible, a configuration management system. Terraform and Ansible work at different levels: Terraform manages the infrastructure, and Ansible configures the environments on virtual machines (VM).

The configuration for setting up the VM environment is described in YAML format, and the infrastructure code is written in HCL (Terraform configuration language). The basic logical unit of recording in HCL is a "block". A block consists of a keyword identifying its type, name, and the block's body inside curly brackets. For example, this is what a virtual server control block in AWS might look like:

resource "aws_instance" "ydb-vm" {
  count                  = var.instance_count
  ami                    = "ami-008fe2fc65df48dac"
  instance_type          = "t2.micro"
  key_name               = var.req_key_pair
  vpc_security_group_ids = [var.input_security_group_id]
  subnet_id              = element(var.input_subnet_ids, count.index % length(var.input_subnet_ids))

  tags = {
    Name                 = "ydb-node-${count.index +1}"
    Username             = "ubuntu"
  }
}

Blocks can be independent, refer to each other, and thus be dependent, or they can also be nested inside each other.

Main block types:

• resource – a block for initializing an infrastructure resource (VM, network, subnet, disk, DNS zone, etc.).
• provider – a block for initializing the provider, API versions, and authentication data.
• variable – a variable either with a default value or empty for storing data entered by the user or passed by other blocks.
• output – outputs data to the terminal and saves it in a variable.
• data – a variable for requesting data from external cloud resources not presented in the created infrastructure.
• module – a logical grouping of resources that can be reused several times within the same or different projects.
• terraform – a block for configuring the behavior of Terraform itself, including the version of Terraform and used providers, as well as the backend settings, which are used for storing Terraform's state.

Blocks are written in files with the .tf extension and are logically grouped in directories, which in Terraform terminology are called modules. A module usually consists of the following files:

• main.tf – the main file where the infrastructure code is located. There can be several files containing infrastructure code.
• variables.tf – local variables of the module, which receive data from other modules or have default values.
• outputs.tf – variables that contain the results of the resource's operation (VM IP addresses, network/subnet IDs, etc.).

Modules are connected to the project in the root file main.tf as follows:

module "vpc" {
  source                     = "./modules/vpc"
  subnets_count              = var.subnets_count
  subnets_availability_zones = var.availability_zones
}

In the example, the vpc module is connected (the module name is assigned when connecting). The required parameter is source, a path to the directory where the module is located. subnets_count and subnets_availability_zones are variables inside the vpc module that take values from the global level variables var.subnets_count, var.availability_zones.

Modules, just like blocks, are placed one after another in the root main.tf file of the project. The main advantage of the modular approach to project organization is the ability to manage logically related sets of resources easily. Therefore, our repository with ready-made Terraform scenarios is organized as follows:

.
├── README.md
├── README_RU.md
├── aws
│   ├── README.md
│   ├── README_RU.md
│   ├── main.tf
│   ├── modules
│   │   ├── dns
│   │   ├── eip
│   │   ├── instance
│   │   ├── key_pair
│   │   ├── security
│   │   └── vpc
│   └── variables.tf
├── azure
│   ├── README.md
│   ├── README_RU.md
│   ├── main.tf
│   ├── modules
│   │   ├── dns
│   │   ├── resource_group
│   │   ├── security
│   │   ├── vm
│   │   └── vpc
│   └── variables.tf
├── ...

The subdirectories contain readme files, a file variables.td with local module variables and a central file main.tf, which includes modules from the modules subdirectory. The set of modules depends on the cloud provider. Basic modules, functionally the same for all providers, have the same names:

• vpc – cloud network and subnet management module.
• dns – DNS zone and DNS records management module.
• security – security group management module.
• instance – VM control module.

To use ready-made Terraform scripts from the repository, you need to download the repository with the command git clone https://github.com/ydb-platform/ydb-terraform.git, make changes to the Terraform configuration file ~/.terraformrc, set the current values of global script variables and download the CLI of the cloud provider where the infrastructure will be created.

If you plan to use multiple providers, you can add the following code to ~/.terraformrc, which will set the download paths for all providers described below:

provider_installation {
  network_mirror {
    url     = "https://terraform-mirror.yandexcloud.net/"
    include = ["registry.terraform.io/*/*"]
  }
  direct {
    exclude = ["registry.terraform.io/*/*"]
    exclude = ["terraform.storage.ydb.tech/*/*"]
  }

If you already use Terraform providers provided in the official repository, they will continue to work.

Deployment overview

The following are step-by-step instructions for creating infrastructure in AWS, Azure, GCP, or Yandex Cloud. By default, example Terraform scenarios deploy the same type of infrastructure:

• VMs in three availability zones.
• Cloud network, public and private subnets (per subnet per availability zone).
• Private DNS zone.
• Security groups allowing ICMP and traffic on ports: 22, 65535, 19001, 8765, and 2135.

Most cluster parameters are adjustable (number of VMs, size and type of connected disks, number of networks, DNS zone domain name, etc.), but please note that the defaults are minimum recommended values, so changing them downwards may cause issues.

Create infrastructure in AWS to deploy YDB cluster

Create an account in AWS and add enough balance to run 9 VMs. Using the calculator, you can estimate the approximate cost of maintaining infrastructure depending on the region and other circumstances.

Create a user and connection key in AWS Cloud to run the AWS CLI:

1. The user is created in the Security credentials → Access management → Users → Create User section.
2. The next step is to assign rights to the user. Select AmazonEC2FullAccess.
3. After creating a user, go to its page, open the Security credentials tab, and click the Create access key button in the Access keys section.
4. Select Command Line Interface from the proposed options.
5. Next, create a tag for the key and click the Create access key button.
6. Copy the values of the Access key and Secret access key fields.

Install AWS CLI and run the aws configure command. Enter the values of the Access key and Secret access key fields saved earlier. Edit the ~/.aws/credentials and ~/.aws/config files as follows:

1. Add [AWS_def_reg] to ~/.aws/config before region = ....
2. Add [AWS] before the connection key secret information.

Go to the aws directory in the downloaded repository and edit the following variables in the variable.tf file:

1. aws_region – the region in which the infrastructure will be deployed.
2. aws_profile – security profile name from the file ~/.aws/credentials.
3. availability_zones – list of region availability zones. It is formed from the name of the region and the serial letter. For example, for the us-west-2 region, the list of availability zones will look like this: ["us-west-2a", "us-west-2b", "us-west-2c"].

Now, being in the aws subdirectory, you can run the following sequence of commands to install the provider, initialize modules, and create the infrastructure:

1. terraform init – installing the provider and initializing modules.
2. terraform plan – creating a plan for future infrastructure.
3. terraform init – create resources in the cloud.

Next, use the commands terraform plan, terraform init, and terraform destroy (destruction of the created infrastructure) to apply further changes as necessary.

Create infrastructure in Azure to deploy YDB cluster

Create an account in Azure and top up your account account with the amount, sufficient to operate 9 VMs. You can estimate the approximate cost of maintaining infrastructure depending on the region and other circumstances using calculator.

Authentication to the Azure Provider for Terraform goes through the CLI:

1. You can download, install, and configure the Azure CLI by following these instructions.
2. Log in using the Azure CLI interactively with the az login command.
3. The easiest way to create a pair of SSH keys (Linux, macOS) is to use the ssh-keygen command.

After logging into Azure and generating SSH keys, you need to change the default value of the following variables in the root file variables.tf:

1. auth_location—the name of the region where the infrastructure will be deployed. The command az account list-locations | grep "displayName" can obtain a list of available regions depending on the subscription.
2. ssh_key_path – path to the public part of the generated SSH key.

Now, being in the azure subdirectory, you can run the following sequence of commands to install the provider, initialize modules, and create the infrastructure:

1. terraform init – installing the provider and initializing modules.
2. terraform plan – creating a plan for future infrastructure.
3. terraform init – create resources in the cloud.

Next, use the commands terraform plan, terraform init, and terraform destroy (destruction of the created infrastructure) to apply further changes as necessary.

Creating infrastructure in Google Cloud Platform to deploy YDB cluster

Register in the Google Cloud console and create a project. Activate your payment account and top it up with funds to launch nine VMs. You can estimate the approximate cost in calculator.

Set up GCP CLI:

1. Activate Compute Engine API and Cloud DNS API.
2. Download and install GCP CLI by following these instructions.
3. Go to the .../google-cloud-sdk/bin subdirectory and run the ./gcloud compute regions list command to get a list of available regions.
4. Run the command ./gcloud auth application-default login to configure the connection profile.

Go to the gcp subdirectory (located in the downloaded repository), and in the variables.tf file set the current values for the following variables:

1. project – the project's name that was set in the Google Cloud cloud console.
2. region – the region where the infrastructure will be deployed.
3. zones – list of availability zones in which subnets and VMs will be created.

Now, being in the gcp subdirectory, you can run the following sequence of commands to install the provider, initialize modules, and create the infrastructure:

1. terraform init – installing the provider and initializing modules.
2. terraform plan – creating a plan for future infrastructure.
3. terraform init – create resources in the cloud.

Next, use the commands terraform plan, terraform init, and terraform destroy (destruction of the created infrastructure) to apply further changes as necessary.

Creating an infrastructure in Yandex Cloud for deploying the YDB cluster

To create infrastructure in Yandex Cloud using Terraform, you need:

1. Prepare the cloud for work:

   • Register in Yandex Cloud.
   • Connect payment account.
   • Make sure that there are enough funds to create nine VMs.

2. Install and configure Yandex Cloud CLI:

   • Download Yandex Cloud CLI.
   • Create profile

3. Create service account using the CLI.

4. Generate Authorized key in JSON format for connecting Terraform to the cloud using the CLI: yc iam key create --service-account-name <acc name> --output <file name> --folder-id <cloud folder id>. Information about the created key will be displayed in the terminal:

   id: ajenap572v8e1l...
   service_account_id: aje90em65r69...
   created_at: "2024-09-03T15:34:57.495126296Z"
   key_algorithm: RSA_2048


   The authorized key will be created in the directory where the command was executed.

5. Configure Yandex Cloud Terraform provider.

6. Download this repository with the command git clone https://github.com/ydb-platform/ydb-terraform.git.

7. Go to the yandex_cloud directory in the downloaded repository and make changes to the following variables in the variables.tf file:

   • key_path – path to the SA key generated using the CLI.
   • cloud_id – cloud ID. You can get a list of available clouds with the command yc resource-manager cloud list.
   • folder_id – Cloud folder ID. Can be obtained with the command yc resource-manager folder list.

Now, being in the yandex_cloud subdirectory, you can run the following sequence of commands to install the provider, initialize modules, and create the infrastructure:

1. terraform init – installing the provider and initializing modules.
2. terraform plan – creating a plan for future infrastructure.
3. terraform init – create resources in the cloud.

Next, use the commands terraform plan, terraform init, and terraform destroy (destruction of the created infrastructure) to apply further changes as necessary.
