Setting up monitoring for a local YDB cluster

This page provides instructions on how to set up monitoring for a local YDB cluster that is deployed using Quick start.

YDB has multiple system health sensors. Instant sensor values are available in the web interface:

http://localhost:31002/counters/

Linked sensors are grouped into a subgroup (such as counters auth). To only view sensor values for a particular subgroup, follow a URL like:

http://localhost:31002/counters/counters=<servicename>/
  • <servicename>: Sensor subgroup name.

For example, data about the utilization of server hardware resources is available at the URL:

http://localhost:31002/counters/counters=utils

You can collect metric values using Prometheus, a popular open-source tool. YDB sensor values in Prometheus format are available at a URL in the following format:

http://localhost:31002/counters/counters=<servicename>/prometheus
  • <servicename>: Sensor subgroup name.

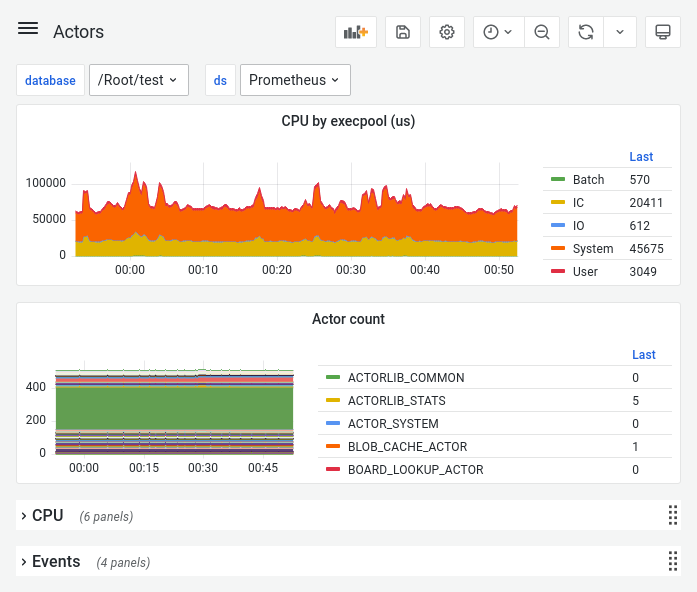

To visualize data, use any system that supports Prometheus, such as Zabbix, Amazon CloudWatch, or Grafana:

grafana-actors

Setting up monitoring with Prometheus and Grafana

To set up monitoring for a local single-node YDB cluster using Prometheus and Grafana:

  1. Install and run Prometheus via a configuration file.
  2. Install and start the Grafana.
  3. Create a data source of the prometheus type in Grafana and attach it to a running Prometheus instance.
  4. Upload YDB dashboards to Grafana.

To upload dashboards, use the Grafana UI Import tool or run a script. Please note that the script uses basic authentication in Grafana. For other cases, modify the script.

Review the dashboard metric reference.
