Connecting to YDB with DataGrip

DataGrip is a powerful cross-platform tool for relational and NoSQL databases.

DataGrip allows you to work with YDB using the Java Database Connectivity (JDBC) protocol. This article demonstrates how to set up this integration.

Adding the YDB JDBC Driver to DataGrip

To connect to YDB from DataGrip, you need the YDB JDBC driver.

To download the YDB JDBC driver, follow these steps:

  1. Go to the ydb-jdbc-driver repository.

  2. Select the latest release (tagged as Latest) and save the ydb-jdbc-driver-shaded-<driver-version>.jar file.

To add the downloaded JDBC driver to DataGrip, follow these steps:

  1. In DataGrip, go to File | Data Sources….

    The Data Sources and Drivers dialog box appears.

  2. In the Data Sources and Drivers dialog box, open the Drivers tab and click the + button.

  3. In the Name field, specify YDB.

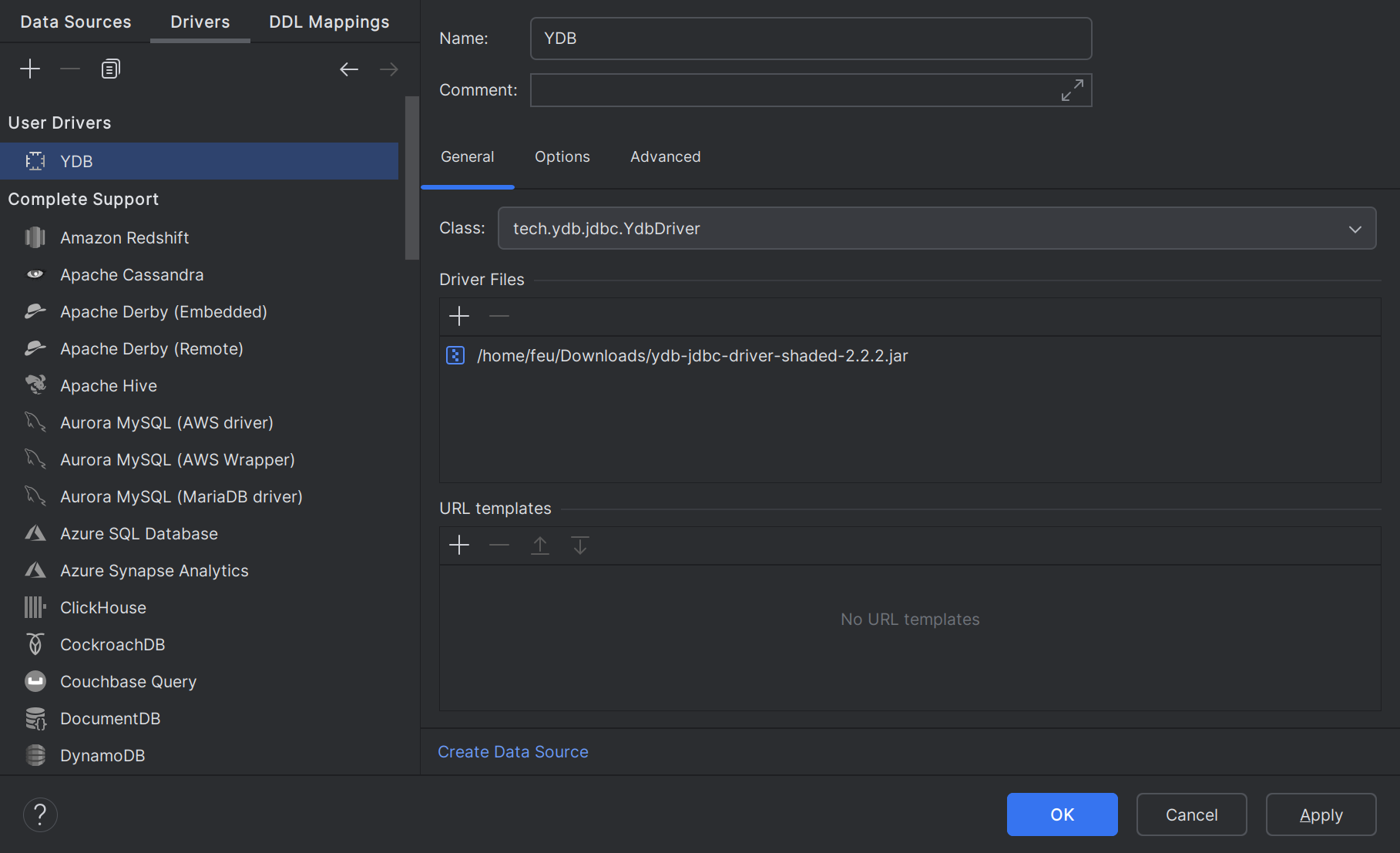

  4. In the Driver Files section, click the + button, choose Custom JARs…, specify the path to the previously downloaded YDB JDBC driver (the ydb-jdbc-driver-shaded-<driver-version>.jar file), and click OK:

  5. In the Class drop-down list, select tech.ydb.jdbc.YdbDriver.

    driver

  6. Click OK.

Creating a Connection to YDB

To establish a connection, perform the following steps:

  1. In DataGrip, go to File | Data Sources….

    The Data Sources and Drivers dialog box appears.

  2. In the Data Sources and Drivers dialog box, on the Data Sources tab, click the + button and select YDB.

  3. In the Authentication drop-down list, select an authentication method.

  4. If you selected the User & Password authentication method, in the User and Password fields, enter your YDB login and password.

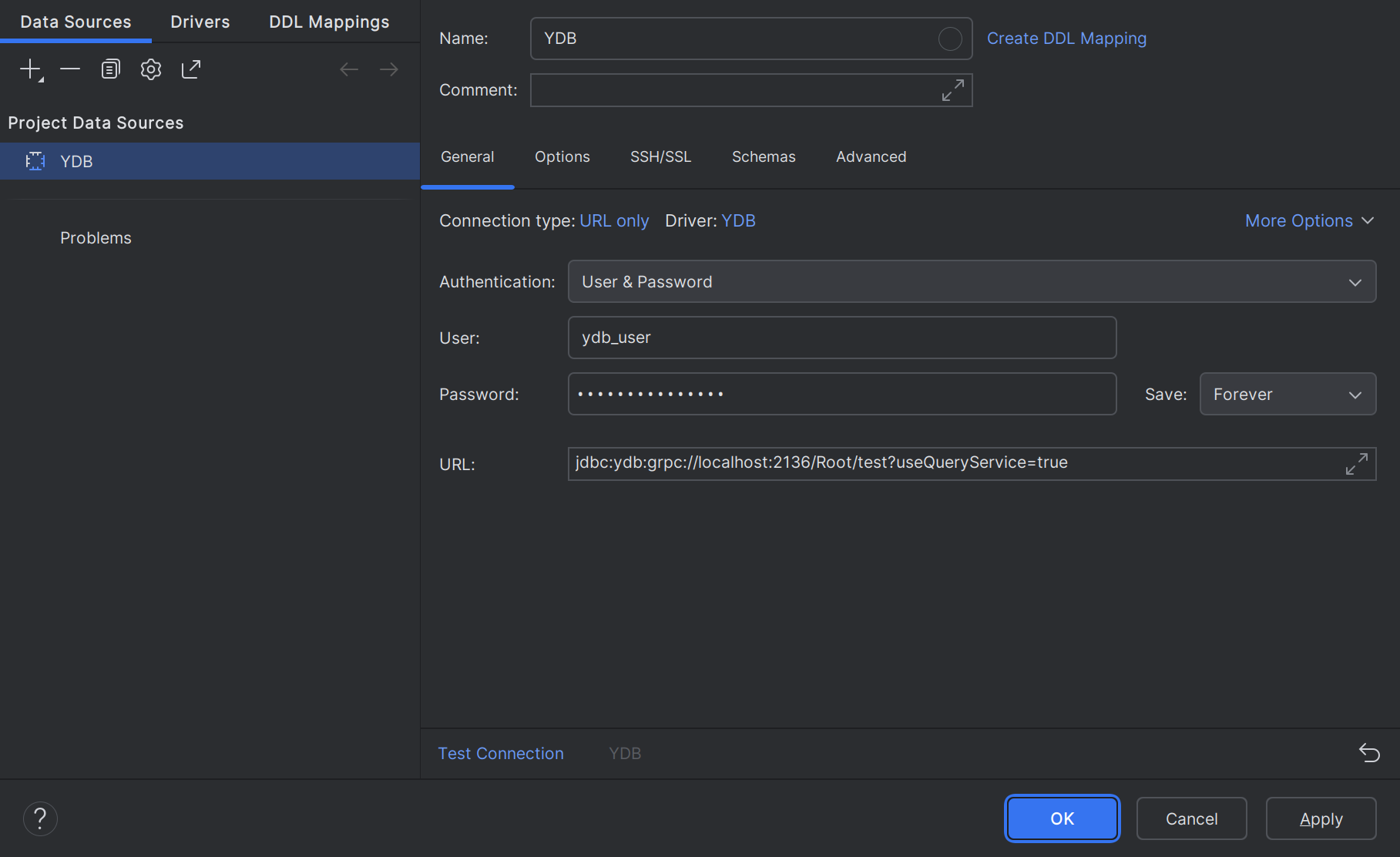

  5. On the General tab, in the URL field, specify the following connection string:

    jdbc:ydb:<ydb_endpoint>/<ydb_database>?useQueryService=true


    Where:

    • ydb_endpoint — the endpoint of the YDB cluster.
    • ydb_database — the path to the database in the YDB cluster.

    A complete list of authentication methods and connection strings for YDB is provided in the JDBC driver description.

    connection

  6. Click Test Connection to verify the settings.

    If all the settings are correct, a message appears indicating a successful connection test.

  7. Click OK to save the connection.

Working with YDB

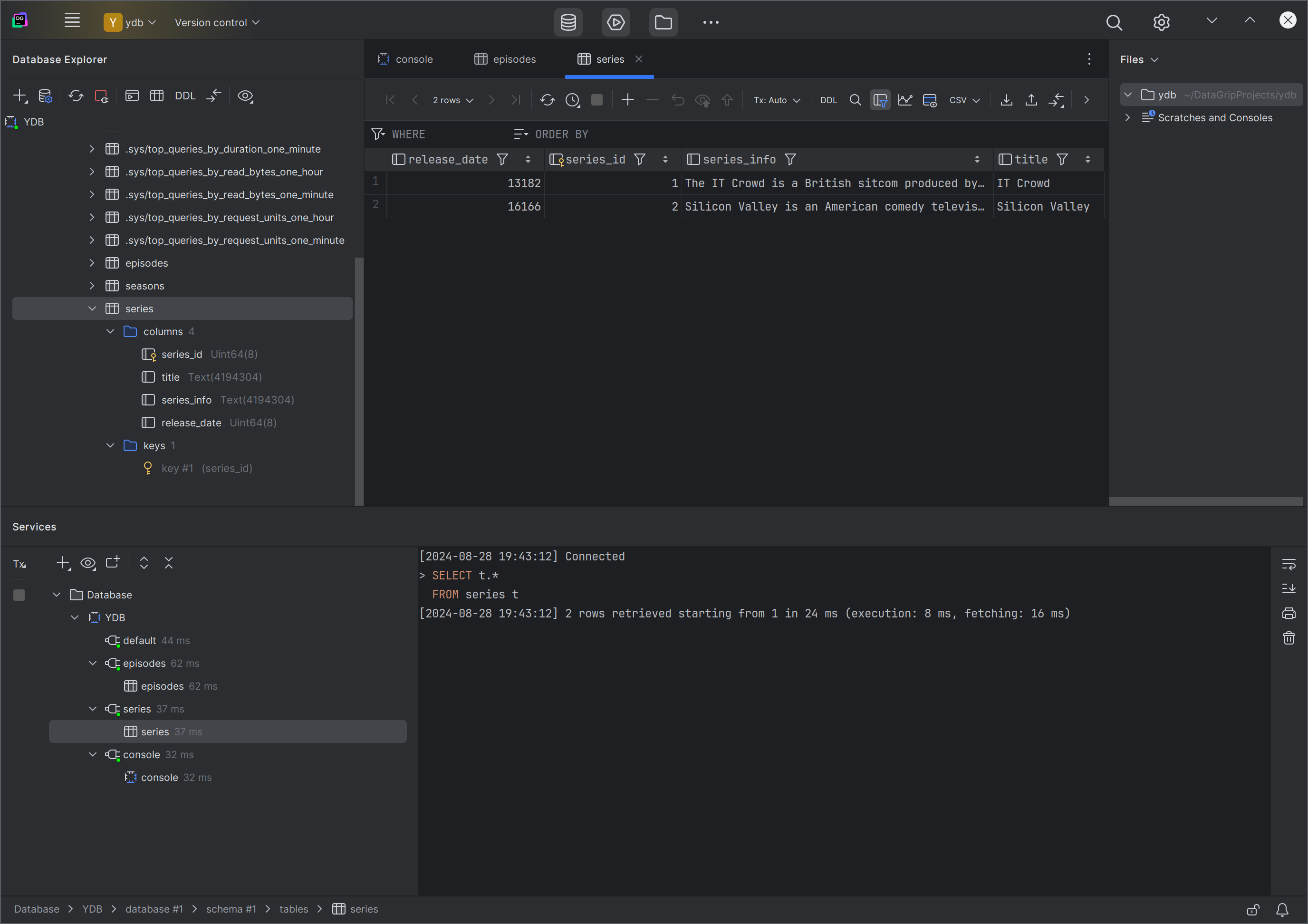

With DataGrip you can view the list and structure of tables.

tables

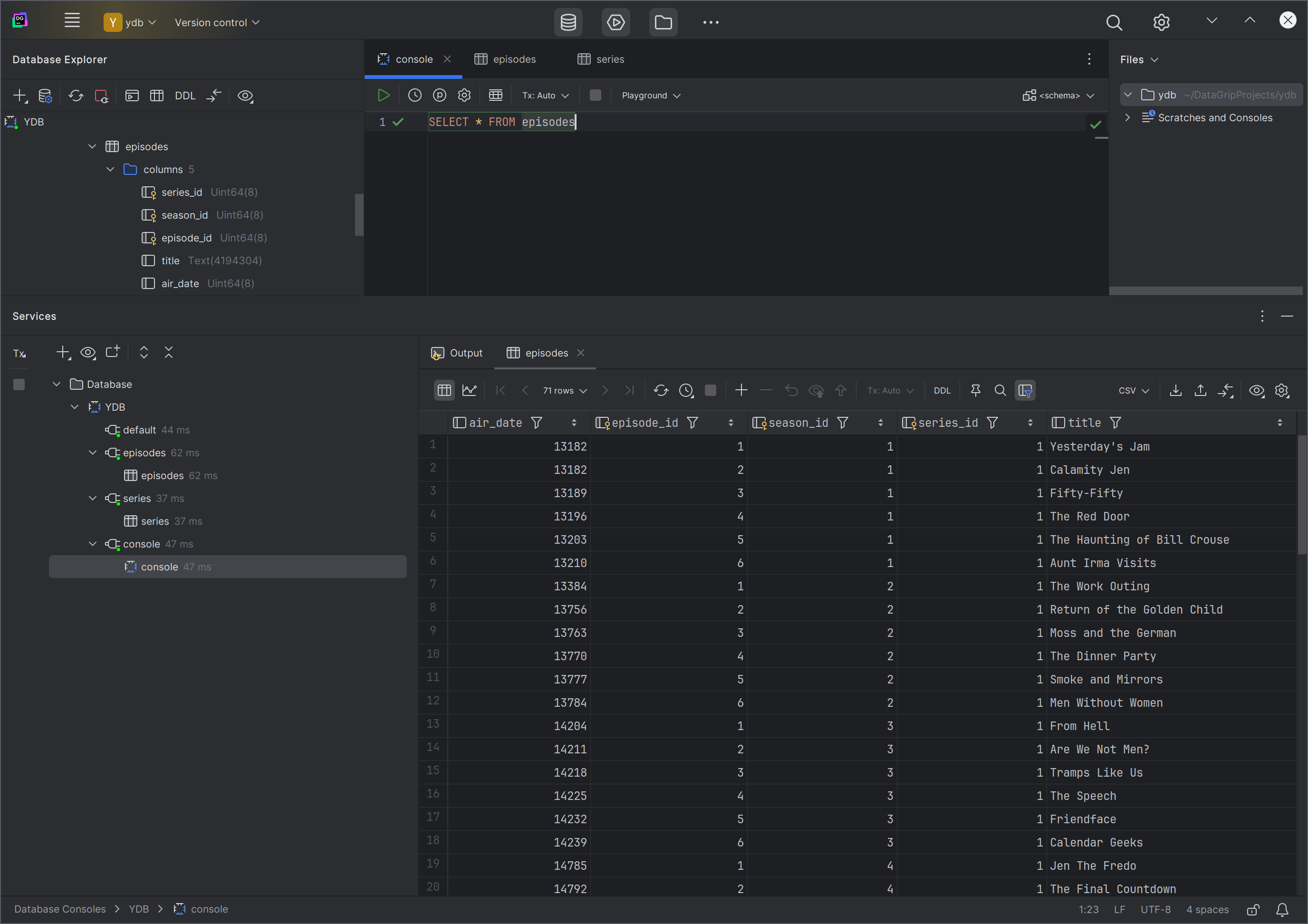

You can also execute queries on the data.

run SQL
