Health Check API

YDB has a built-in self-diagnostic system, which can be used to get a brief report on the database status and information about existing issues.

To initiate the check, call the SelfCheck method from NYdb::NMonitoring namespace in the SDK. You must also pass the name of the checked DB as usual.

App code snippet for creating a client:

auto client = NYdb::NMonitoring::TMonitoringClient(driver);

Calling SelfCheck method:

auto settings = TSelfCheckSettings();
settings.ReturnVerboseStatus(true);
auto result = client.SelfCheck(settings).GetValueSync();

Call parameters

SelfCheck method provides information in the form of a set of issues which could look like this:

{
  "id": "RED-27c3-70fb",
  "status": "RED",
  "message": "Database has multiple issues",
  "location": {
    "database": {
      "name": "/slice"
    }
  },
  "reason": [
    "RED-27c3-4e47",
    "RED-27c3-53b5",
    "YELLOW-27c3-5321"
  ],
  "type": "DATABASE",
  "level": 1
}

This is a short messages each about a single issue. All parameters will affect the amount of information the service returns for the specified database.

The complete list of extra parameters is presented below:

struct TSelfCheckSettings : public TOperationRequestSettings<TSelfCheckSettings>{
    FLUENT_SETTING_OPTIONAL(bool, ReturnVerboseStatus);
    FLUENT_SETTING_OPTIONAL(EStatusFlag, MinimumStatus);
    FLUENT_SETTING_OPTIONAL(ui32, MaximumLevel);
};
Parameter Type Description
ReturnVerboseStatus bool If ReturnVerboseStatus is specified, the response will also include a summary of the overall health of the database in the database_status field (Example). Default is false.
MinimumStatus [EStatusFlag] (#issue-status) Each issue has a status field. If minimum_status is specified, issues with a higher status will be discarded. By default, all issues will be listed.
MaximumLevel int32 Each issue has a level field. If maximum_level is specified, issues with deeper levels will be discarded. By default, all issues will be listed.

Response structure

For the full response structure, see the ydb_monitoring.proto file in the YDB Git repository.
Calling the SelfCheck method will return the following message:

message SelfCheckResult {
    SelfCheck.Result self_check_result = 1;
    repeated IssueLog issue_log = 2;
    repeated DatabaseStatus database_status = 3;
    LocationNode location = 4;
}

The shortest HealthCheck response looks like this . It is returned if there is nothing wrong with the database.

If any issues are detected, the issue_log field will contain descriptions of the issues with the following structure:

message IssueLog {
    string id = 1;
    StatusFlag.Status status = 2;
    string message = 3;
    Location location = 4;
    repeated string reason = 5;
    string type = 6;
    uint32 level = 7;
}

Description of fields in the response

Field Description
self_check_result enum field which contains the database check result
issue_log.id A unique issue ID within this response.
issue_log.status enum field which contains the issue status
issue_log.message Text that describes the issue.
issue_log.location Location of the issue. This can be a physical location or an execution context.
issue_log.reason This is a set of elements, each of which describes an issue in the system at a certain level.
issue_log.type Issue category (by subsystem). Each type is at a certain level and interconnected with others through a rigid hierarchy (as shown in the picture above).
issue_log.level Issue nesting depth.
database_status If the settings include ReturnVerboseStatus parameter, the database_status field will be populated.
This field offers a comprehensive summary of the overall health of the database.
It is designed to provide a quick overview of the database's condition, helping to assess its health and identify any major issuehs at a high level. Example. For the full response structure, see the ydb_monitoring.proto file in the YDB Git repository.
location Contains information about the host, where the HealthCheck service was called

Issues hierarchy

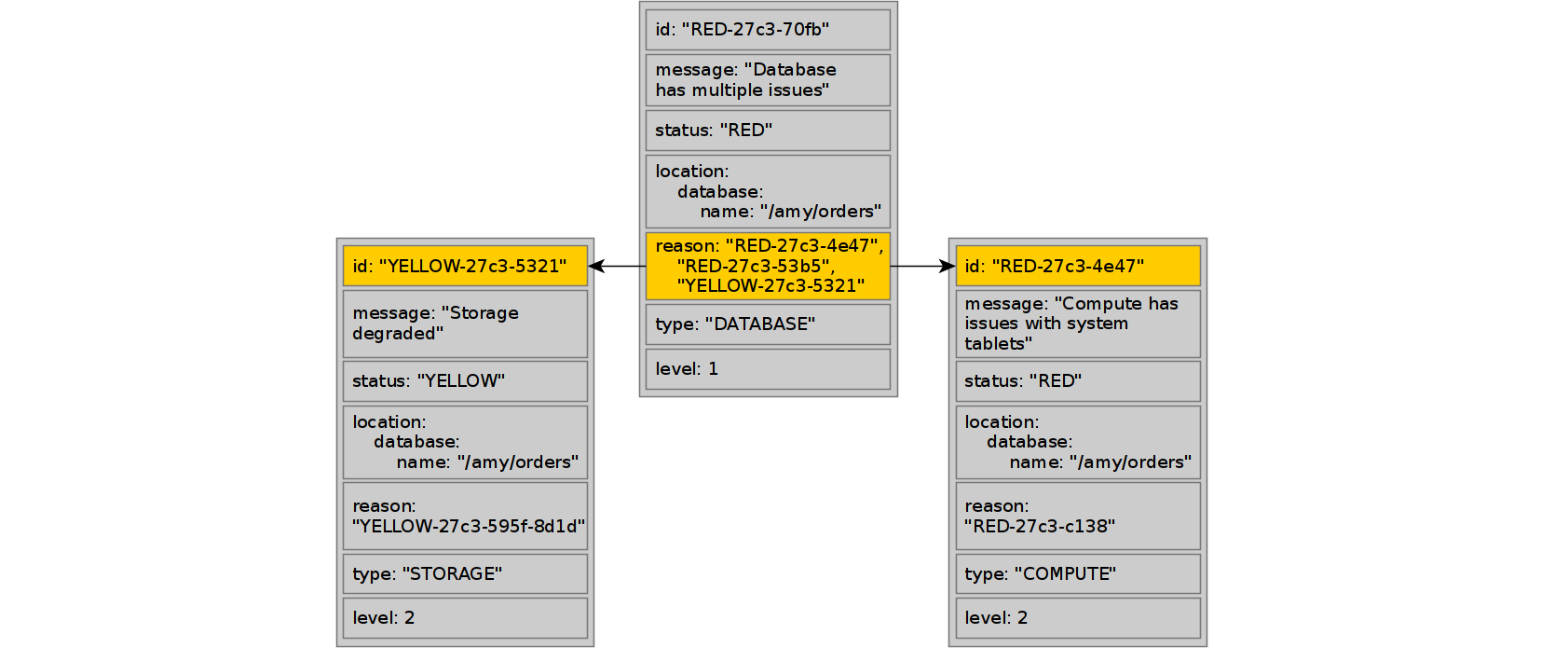

Issues can be arranged hierarchically using the id and reason fields, which help visualize how issues in different modules affect the overall system state. All issues are arranged in a hierarchy where higher levels can depend on nested levels:

cards_hierarchy

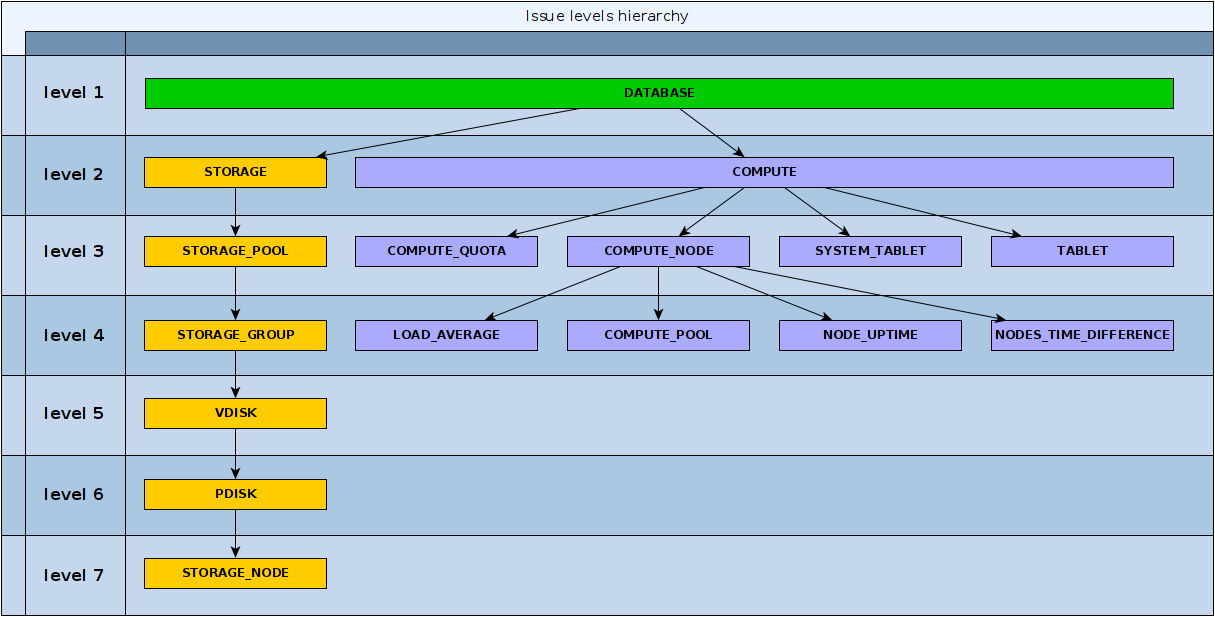

Each issue has a nesting level. The higher the level, the deeper the issue is within the hierarchy. Issues with the same type always have the same level, and they can be represented hierarchically.

issues_hierarchy

Database check result

The most general status of the database. It can have the following values:

Value Description
GOOD No issues were detected.
DEGRADED Degradation of at least one of the database systems was detected, but the database is still functioning (for example, allowable disk loss).
MAINTENANCE_REQUIRED Significant degradation was detected, there is a risk of database unavailability, and human intervention is required.
EMERGENCY A serious problem was detected in the database, with complete or partial unavailability.

Issue status

The status (severity) of the current issue:

Value Description
GREY Unable to determine the status (an issue with the self-diagnostic subsystem).
GREEN No issues detected.
BLUE Temporary minor degradation that does not affect database availability; the system is expected to return to GREEN.
YELLOW A minor issue with no risks to availability. It is recommended to continue monitoring the issue.
ORANGE A serious issue, a step away from losing availability. Maintenance may be required.
RED A component is faulty or unavailable.

Possible issues

DATABASE

Database has multiple issues, Database has compute issues, Database has storage issues

Description: These issues depend solely on the underlying COMPUTE and STORAGE layers. This represents the most general status of a database.

STORAGE

There are no storage pools

Description: Information about storage pools is unavailable. Most likely, the storage pools are not configured.

Storage degraded, Storage has no redundancy, Storage failed

Description: These issues depend solely on the underlying STORAGE_POOLS layer.

System tablet BSC didn't provide information

Description: Storage diagnostics will be generated using an alternative method.

Storage usage over 75%, Storage usage over 85%, Storage usage over 90%

Description: Some data needs to be removed, or the database needs to be reconfigured with additional disk space.

STORAGE_POOL

Pool degraded, Pool has no redundancy, Pool failed

Description: These issues depend solely on the underlying STORAGE_GROUP layer.

STORAGE_GROUP

Group has no vslots

Description: This situation is not expected; it is an internal issue.

Group degraded

Description: A number of disks allowed in the group are not available.

Logic of work: HealthCheck checks various parameters (fault tolerance mode, number of failed disks, disk status, etc.) and sets the appropriate status for the group accordingly.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, apply the Groups and Degraded filters, and use the known group id to check the availability of nodes and disks on the nodes.

Group has no redundancy

Description: A storage group has lost its redundancy. Another VDisk failure could result in the loss of the group.

Logic of work: HealthCheck monitors various parameters (fault tolerance mode, number of failed disks, disk status, etc.) and sets the appropriate status for the group based on these parameters.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, apply the Groups and Degraded filters, and use the known group id to check the availability of nodes and disks on those nodes.

Group failed

Description: A storage group has lost its integrity, and data is no longer available. HealthCheck evaluates various parameters (fault tolerance mode, number of failed disks, disk status, etc.) and determines the appropriate status, displaying a message accordingly.

Logic of work: HealthCheck monitors various parameters (fault tolerance mode, number of failed disks, disk status, etc.) and sets the appropriate status for the group accordingly.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, apply the Groups and Degraded filters, and use the known group id to check the availability of nodes and disks on those nodes.```

VDISK

System tablet BSC did not provide known status

Description: This situation is not expected; it is an internal issue.

VDisk is not available

Description: The disk is not operational.

Actions: In YDB Embedded UI, navigate to the database page, select the Storage tab, and apply the Groups and Degraded filters. The group id can be found through the related STORAGE_GROUP issue. Hover over the relevant VDisk to identify the node with the problem and check the availability of nodes and disks on those nodes.

VDisk is being initialized

Description: The disk is in the process of initialization.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, and apply the Groups and Degraded filters. The group id can be found through the related STORAGE_GROUP issue. Hover over the relevant VDisk to identify the node with the problem and check the availability of nodes and disks on those nodes.

Replication in progress

Description: The disk is accepting queries, but not all data has been replicated.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, and apply the Groups and Degraded filters. The group id can be found through the related STORAGE_GROUP issue. Hover over the relevant VDisk to identify the node with the problem and check the availability of nodes and disks on those nodes.

VDisk have space issue

Description: These issues depend solely on the underlying PDISK layer.

PDISK

Unknown PDisk state

Description: HealthCheck the system can't parse pdisk state.

PDisk state is

Description: Indicates state of physical disk.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, set the Nodes and Degraded filters, and use the known node id and PDisk to check the availability of nodes and disks on the nodes.

Available size is less than 12%, Available size is less than 9%, Available size is less than 6%

Description: Free space on the physical disk is running out.
Actions: In Embedded UI, navigate to the database page, select the Storage tab, set the Nodes and Out of Space filters, and use the known node and PDisk identifiers to check the available space.

PDisk is not available

Description: A physical disk is not available.

Actions: In Embedded UI, navigate to the database page, select the Storage tab, set the Nodes and Degraded filters, and use the known node and PDisk identifiers to check the availability of nodes and disks on the nodes.

STORAGE_NODE

Storage node is not available

Description: A storage node is not available.

COMPUTE

There are no compute nodes

Description: The database has no nodes available to start the tablets. Unable to determine COMPUTE_NODE issues below.

Compute has issues with system tablets

Description: These issues depend solely on the underlying SYSTEM_TABLET layer.

Some nodes are restarting too often

Description: These issues depend solely on the underlying NODE_UPTIME layer.

Compute is overloaded

Description: These issues depend solely on the underlying COMPUTE_POOL layer.

Compute quota usage

Description: These issues depend solely on the underlying COMPUTE_QUOTA layer.

Compute has issues with tablets

Description: These issues depend solely on the underlying TABLET layer.

COMPUTE_QUOTA

Paths quota usage is over than 90%, Paths quota usage is over than 99%, Paths quota exhausted, Shards quota usage is over than 90%, Shards quota usage is over than 99%, Shards quota exhausted

Description: Quotas are exhausted.

Actions: Check the number of objects (tables, topics) in the database and delete any unnecessary ones.

SYSTEM_TABLET

System tablet is unresponsive, System tablet response time over 1000ms, System tablet response time over 5000ms

Description: The system tablet is either not responding or takes too long to respond.

Actions: In Embedded UI, navigate to the Storage tab and apply the Nodes filter. Check the Uptime and the nodes' statuses. If the Uptime is short, review the logs to determine the reasons for the node restarts.

TABLET

Tablets are restarting too often

Description: Tablets are restarting too frequently.

Actions: In Embedded UI, navigate to the Nodes tab. Check the Uptime and the nodes' statuses. If the Uptime is short, review the logs to determine the reasons for the node restarts.

Tablets/Followers are dead

Description: Tablets are not running (likely cannot be started).

Actions: In Embedded UI, navigate to the Nodes tab. Check the Uptime and the nodes' statuses. If the Uptime is short, review the logs to determine the reasons for the node restarts.

LOAD_AVERAGE

LoadAverage above 100%

Description: A physical host is overloaded, meaning the system is operating at or beyond its capacity, potentially due to a high number of processes waiting for I/O operations. For more information on load, see Load (computing).

Logic of work:

  • Load Information:

    • Source: /proc/loadavg
    • The first number of the three represents the average load over the last 1 minute.
  • Logical Cores Information:

    • Primary Source: /sys/fs/cgroup/cpu.max
    • Fallback Sources: /sys/fs/cgroup/cpu/cpu.cfs_quota_us, /sys/fs/cgroup/cpu/cpu.cfs_period_us

The number of cores is calculated by dividing the quota by the period (quota/period)(quota / period).

Actions: Check the CPU load on the nodes.

COMPUTE_POOL

Pool usage is over than 90%, Pool usage is over than 95%, Pool usage is over than 99%

Description: One of the pools' CPUs is overloaded.

Actions: Add cores to the configuration of the actor system for the corresponding CPU pool.

NODE_UPTIME

The number of node restarts has increased

Description: The number of node restarts has exceeded the threshold. By default, this is set to 10 restarts per hour.

Actions: Check the logs to determine the reasons for the process restarts.

Node is restarting too often

Description: The number of node restarts has exceeded the threshold. By default, this is set to 30 restarts per hour.

Actions: Check the logs to determine the reasons for the process restarts.

NODES_TIME_DIFFERENCE

Node is ... ms behind peer [id], Node is ... ms ahead of peer [id]

Description: Time drift on nodes might lead to potential issues with coordinating distributed transactions. This issue starts to appear when the time difference is 5 ms or more.

Actions: Check for discrepancies in system time between the nodes listed in the alert, and verify the operation of the time synchronization process.

Examples

The shortest HealthCheck response looks like this. It is returned if there is nothing wrong with the database:

{
  "self_check_result": "GOOD"
}

Verbose example

GOOD response with verbose parameter:

{
    "self_check_result": "GOOD",
    "database_status": [
        {
            "name": "/amy/db",
            "overall": "GREEN",
            "storage": {
                "overall": "GREEN",
                "pools": [
                    {
                        "id": "/amy/db:ssdencrypted",
                        "overall": "GREEN",
                        "groups": [
                            {
                                "id": "2181038132",
                                "overall": "GREEN",
                                "vdisks": [
                                    {
                                        "id": "9-1-1010",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "9-1",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "11-1004-1009",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "11-1004",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "10-1003-1011",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "10-1003",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "8-1005-1010",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "8-1005",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "7-1-1008",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "7-1",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "6-1-1007",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "6-1",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "4-1005-1010",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "4-1005",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "2-1003-1013",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "2-1003",
                                            "overall": "GREEN"
                                        }
                                    },
                                    {
                                        "id": "1-1-1008",
                                        "overall": "GREEN",
                                        "pdisk": {
                                            "id": "1-1",
                                            "overall": "GREEN"
                                        }
                                    }
                                ]
                            }
                        ]
                    }
                ]
            },
            "compute": {
                "overall": "GREEN",
                "nodes": [
                    {
                        "id": "50073",
                        "overall": "GREEN",
                        "pools": [
                            {
                                "overall": "GREEN",
                                "name": "System",
                                "usage": 0.000405479
                            },
                            {
                                "overall": "GREEN",
                                "name": "User",
                                "usage": 0.00265229
                            },
                            {
                                "overall": "GREEN",
                                "name": "Batch",
                                "usage": 0.000347933
                            },
                            {
                                "overall": "GREEN",
                                "name": "IO",
                                "usage": 0.000312022
                            },
                            {
                                "overall": "GREEN",
                                "name": "IC",
                                "usage": 0.000945925
                            }
                        ],
                        "load": {
                            "overall": "GREEN",
                            "load": 0.2,
                            "cores": 4
                        }
                    },
                    {
                        "id": "50074",
                        "overall": "GREEN",
                        "pools": [
                            {
                                "overall": "GREEN",
                                "name": "System",
                                "usage": 0.000619053
                            },
                            {
                                "overall": "GREEN",
                                "name": "User",
                                "usage": 0.00463859
                            },
                            {
                                "overall": "GREEN",
                                "name": "Batch",
                                "usage": 0.000596071
                            },
                            {
                                "overall": "GREEN",
                                "name": "IO",
                                "usage": 0.0006241
                            },
                            {
                                "overall": "GREEN",
                                "name": "IC",
                                "usage": 0.00218465
                            }
                        ],
                        "load": {
                            "overall": "GREEN",
                            "load": 0.08,
                            "cores": 4
                        }
                    },
                    {
                        "id": "50075",
                        "overall": "GREEN",
                        "pools": [
                            {
                                "overall": "GREEN",
                                "name": "System",
                                "usage": 0.000579126
                            },
                            {
                                "overall": "GREEN",
                                "name": "User",
                                "usage": 0.00344293
                            },
                            {
                                "overall": "GREEN",
                                "name": "Batch",
                                "usage": 0.000592347
                            },
                            {
                                "overall": "GREEN",
                                "name": "IO",
                                "usage": 0.000525747
                            },
                            {
                                "overall": "GREEN",
                                "name": "IC",
                                "usage": 0.00174265
                            }
                        ],
                        "load": {
                            "overall": "GREEN",
                            "load": 0.26,
                            "cores": 4
                        }
                    }
                ],
                "tablets": [
                    {
                        "overall": "GREEN",
                        "type": "SchemeShard",
                        "state": "GOOD",
                        "count": 1
                    },
                    {
                        "overall": "GREEN",
                        "type": "SysViewProcessor",
                        "state": "GOOD",
                        "count": 1
                    },
                    {
                        "overall": "GREEN",
                        "type": "Coordinator",
                        "state": "GOOD",
                        "count": 3
                    },
                    {
                        "overall": "GREEN",
                        "type": "Mediator",
                        "state": "GOOD",
                        "count": 3
                    },
                    {
                        "overall": "GREEN",
                        "type": "Hive",
                        "state": "GOOD",
                        "count": 1
                    }
                ]
            }
        }
    ]
}

Emergency example

Response with EMERGENCY status:

{
  "self_check_result": "EMERGENCY",
  "issue_log": [
    {
      "id": "RED-27c3-70fb",
      "status": "RED",
      "message": "Database has multiple issues",
      "location": {
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "RED-27c3-4e47",
        "RED-27c3-53b5",
        "YELLOW-27c3-5321"
      ],
      "type": "DATABASE",
      "level": 1
    },
    {
      "id": "RED-27c3-4e47",
      "status": "RED",
      "message": "Compute has issues with system tablets",
      "location": {
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "RED-27c3-c138-BSController"
      ],
      "type": "COMPUTE",
      "level": 2
    },
    {
      "id": "RED-27c3-c138-BSController",
      "status": "RED",
      "message": "System tablet is unresponsive",
      "location": {
        "compute": {
          "tablet": {
            "type": "BSController",
            "id": [
              "72057594037989391"
            ]
          }
        },
        "database": {
          "name": "/slice"
        }
      },
      "type": "SYSTEM_TABLET",
      "level": 3
    },
    {
      "id": "RED-27c3-53b5",
      "status": "RED",
      "message": "System tablet BSC didn't provide information",
      "location": {
        "database": {
          "name": "/slice"
        }
      },
      "type": "STORAGE",
      "level": 2
    },
    {
      "id": "YELLOW-27c3-5321",
      "status": "YELLOW",
      "message": "Storage degraded",
      "location": {
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "YELLOW-27c3-595f-8d1d"
      ],
      "type": "STORAGE",
      "level": 2
    },
    {
      "id": "YELLOW-27c3-595f-8d1d",
      "status": "YELLOW",
      "message": "Pool degraded",
      "location": {
        "storage": {
          "pool": {
            "name": "static"
          }
        },
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "YELLOW-27c3-ef3e-0"
      ],
      "type": "STORAGE_POOL",
      "level": 3
    },
    {
      "id": "RED-84d8-3-3-1",
      "status": "RED",
      "message": "PDisk is not available",
      "location": {
        "storage": {
          "node": {
            "id": 3,
            "host": "man0-0026.ydb-dev.nemax.nebiuscloud.net",
            "port": 19001
          },
          "pool": {
            "group": {
              "vdisk": {
                "pdisk": [
                  {
                    "id": "3-1",
                    "path": "/dev/disk/by-partlabel/NVMEKIKIMR01"
                  }
                ]
              }
            }
          }
        }
      },
      "type": "PDISK",
      "level": 6
    },
    {
      "id": "RED-27c3-4847-3-0-1-0-2-0",
      "status": "RED",
      "message": "VDisk is not available",
      "location": {
        "storage": {
          "node": {
            "id": 3,
            "host": "man0-0026.ydb-dev.nemax.nebiuscloud.net",
            "port": 19001
          },
          "pool": {
            "name": "static",
            "group": {
              "vdisk": {
                "id": [
                  "0-1-0-2-0"
                ]
              }
            }
          }
        },
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "RED-84d8-3-3-1"
      ],
      "type": "VDISK",
      "level": 5
    },
    {
      "id": "YELLOW-27c3-ef3e-0",
      "status": "YELLOW",
      "message": "Group degraded",
      "location": {
        "storage": {
          "pool": {
            "name": "static",
            "group": {
              "id": [
                "0"
              ]
            }
          }
        },
        "database": {
          "name": "/slice"
        }
      },
      "reason": [
        "RED-27c3-4847-3-0-1-0-2-0"
      ],
      "type": "STORAGE_GROUP",
      "level": 4
    }
  ],
  "location": {
    "id": 5,
    "host": "man0-0028.ydb-dev.nemax.nebiuscloud.net",
    "port": 19001
  }
}
