Frequent tablet moves between nodes

YDB automatically balances the load by moving tablets from overloaded nodes to other nodes. This process is managed by Hive. When Hive moves tablets, queries affecting those tablets might experience increased latencies while they wait for the tablet to get initialized on the new node.

YDB considers usage of the following hardware resources for balancing nodes:

• CPU
• Memory
• Network
• Counter

Autobalancing occurs in the following cases:

• Imbalanced Hardware Resource Usage

  YDB uses the Scatter metric to evaluate the balance of hardware resource usage. For more details on the Scatter metric's calculation logic and balancing triggers, see the Resource Usage Imbalance section.

• Overloaded nodes (CPU and memory usage)

  Hive initiates balancing in case of a significant load asymmetry (for example, > 90% on one node and < 70% on another). Learn more here: Node Overload.

• Uneven distribution of database objects

  For tablets with no explicit resource consumption, Hive uses a fake Counter resource to ensure their even distribution. Balancing is triggered if this distribution becomes skewed. Learn more: Even Distribution for a Specific Object.

Diagnostics

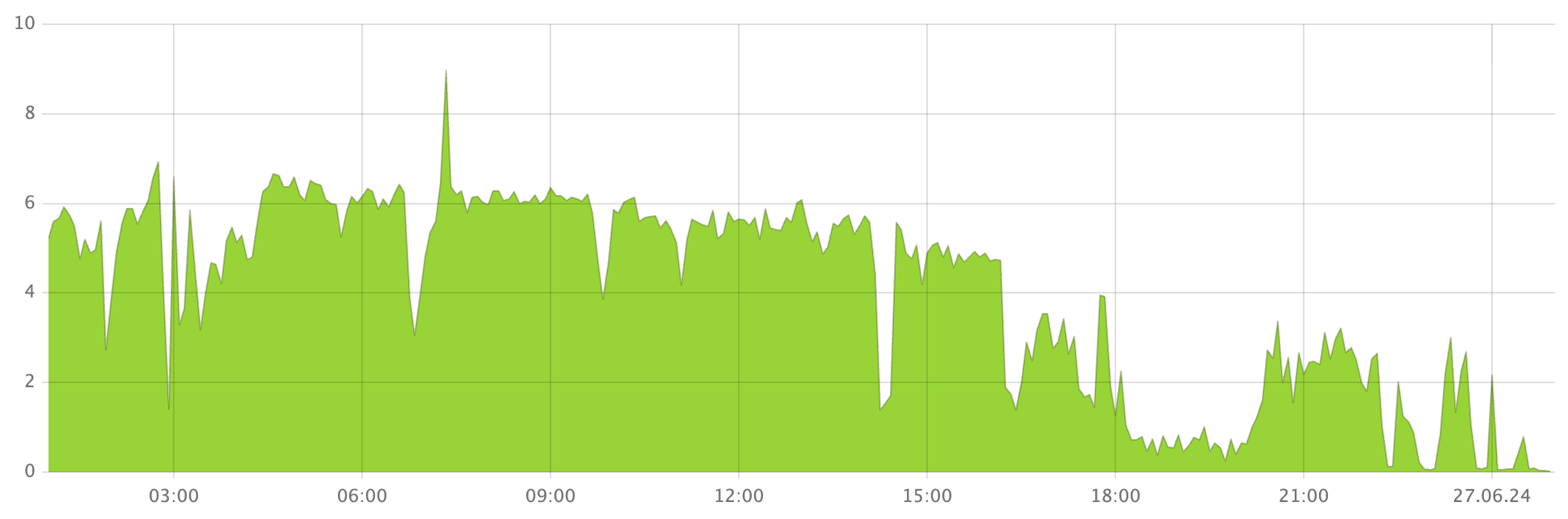

1. See if the Tablets moved by Hive chart in the DB status Grafana dashboard shows any spikes.



    This chart displays the time-series data for the number of tablets moved per second.


2. See the Hive balancer stats.

   1. Open Embedded UI.

   2. Click Developer UI in the upper right corner of the Embedded UI.

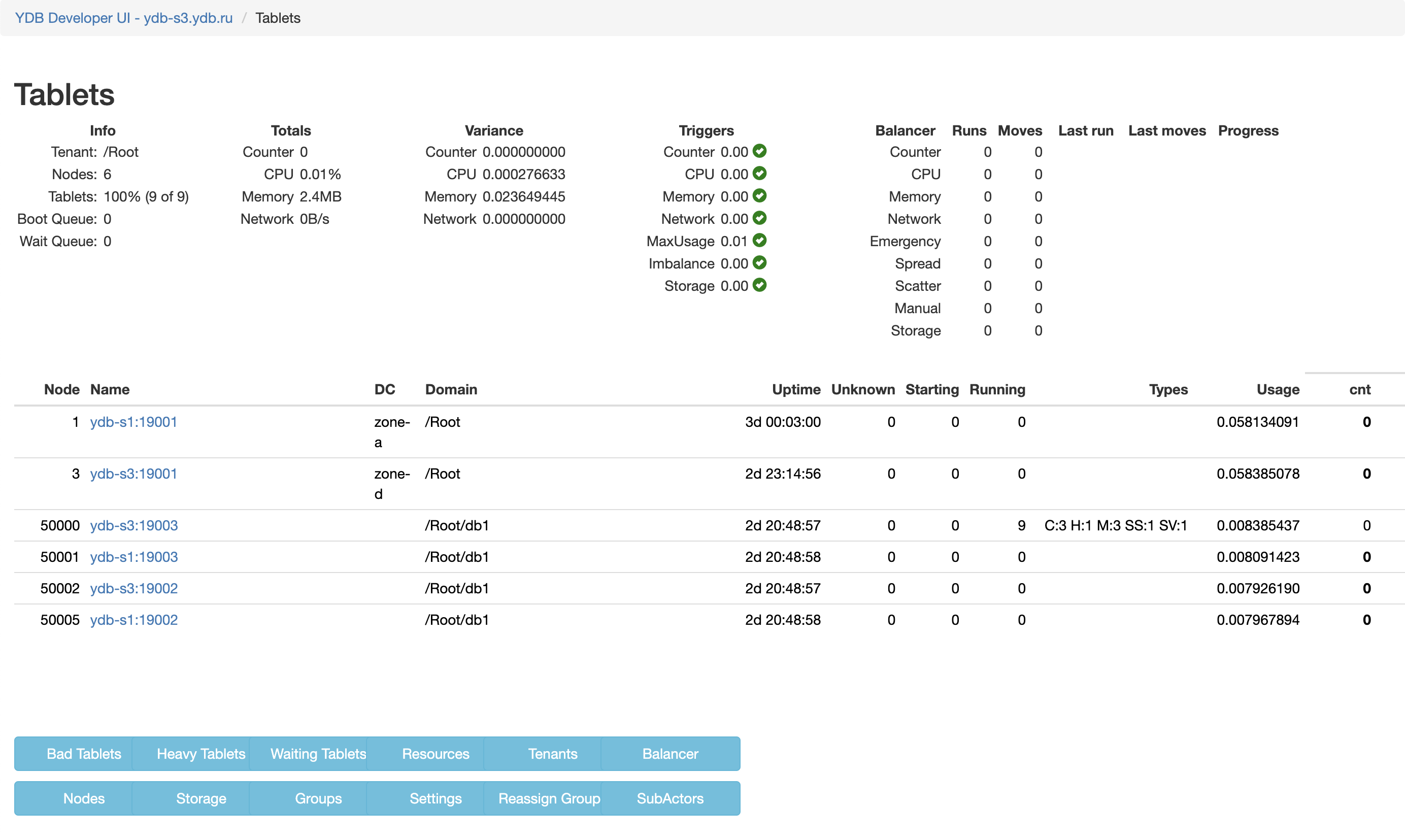

   3. In the Developer UI, navigate to Tablets > Hive > App.

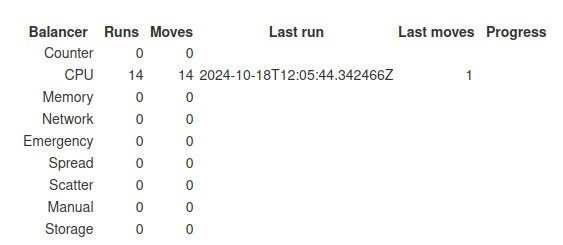

      See the balancer stats in the upper right corner.



   4. Additionally, to see the recently moved tablets, click the Balancer button.

      The Balancer window will appear. The list of recently moved tablets is displayed in the Latest tablet moves section.

Recommendations

Adjust Hive balancer settings:

1. Open Embedded UI.

2. Click Developer UI in the upper right corner of the Embedded UI.

3. In the Developer UI, navigate to Tablets > Hive > App.



4. Click Settings.

5. To reduce the likelihood of overly frequent balancing, increase the following Hive balancer thresholds:

   Parameter	Description	Default value
   MinCounterScatterToBalance	The threshold for the counter scatter value. When this value is reached, Hive starts balancing the load.	0.02
   MinCPUScatterToBalance	The threshold for the CPU scatter value. When this value is reached, Hive starts balancing the load.	0.5
   MinMemoryScatterToBalance	The threshold for the memory scatter value. When this value is reached, Hive starts balancing the load.	0.5
   MinNetworkScatterToBalance	The threshold for the network scatter value. When this value is reached, Hive starts balancing the load.	0.5
   MaxNodeUsageToKick	The threshold for the node resource usage. When this value is reached, Hive starts emergency balancing.	0.9
   ObjectImbalanceToBalance	The threshold for the database object imbalance metric.	0.02

   Note

   These parameters use relative values, where 1.0 represents 100% and effectively disables balancing. If the total hardware resource value can exceed 100%, adjust the ratio accordingly.
