Query plan structure
To understand how a query will be executed, you can build and analyze its plan. The query plan structure in YDB is represented as a graph, where each node contains information about operations and tables.
Below, you can find information about node types, and an example of analyzing a specific query plan can be found here.
Node types
Stage
Query execution stage.

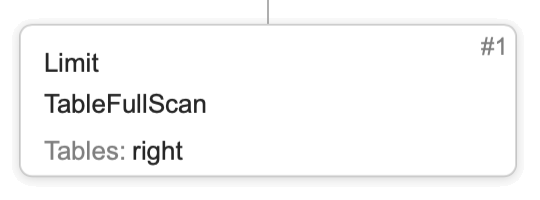

UI representation
A stage can contain the following operations:
TableFullScan
Full table scan. This operation's resource consumption is proportional to the table size, so it should be avoided whenever possible.
Attribute | Description |
---|---|
Table | table name |
ReadColumns | read columns list |
ReadLimit | read rows limit |
Reverse | flag indicating the order in which the rows will be read, by default the order is forward (ascending), but if the flag is set to true , the reading order will be reversed (descending). |
Parallel | flag indicating that rows will be read from shards in parallel |
TableRangeScan
Reading a table by a specific primary key range.
Attribute | Description |
---|---|
Table | table name |
ReadColumns | read columns list |
ReadRange | key range |
ReadLimit | read rows limit |
Reverse | flag indicating the order in which the rows will be read, by default the order is forward (ascending), but if the flag is set to true , the reading order will be reversed (descending). |
Parallel | flag indicating that rows will be read from shards in parallel |
TablePointLookup
Reading a table by specific primary key values. Note that for this operation, all components of the primary key should be specified. Reading by a key prefix is performed as a TableRangeScan
operation.
Attribute | Description |
---|---|
Table | table name |
ReadColumns | read columns list |
Upsert
Updates or inserts multiple rows to a table based on a comparison by the primary key. The values of the specified columns are updated for the existing rows, but the values of the other columns are preserved.
Attribute | Description |
---|---|
Table | table name |
Columns | columns contained in the row |
Delete
Deleting rows from the table.
Attribute | Description |
---|---|
Table | table name |
Join
Combine two data sources (subqueries or tables) by keys. The join strategy is specified in the operation description.
Filter
Filtering rows, keeping only those for which a predicate returns true
.
Attribute | Description |
---|---|
Predicate | filtering condition |
Limit | rows limit |
Aggregate
Grouping rows by the values of the specified columns or expressions.
Attribute | Description |
---|---|
GroupBy | columns or expressions used for aggregation |
Aggregation | aggregate function |
Sort
Sorting rows.
Attribute | Description |
---|---|
SortBy | columns or expressions used for sorting |
TopSort
Partial rows sorting with a specified limit.
Attribute | Description |
---|---|
TopSortBy | columns or expressions used for sorting |
Limit | rows limit |
Top
Returns the first N elements that are less or equal to the N+1 element if the entire sequence were sorted.
Attribute | Description |
---|---|
TopBy | columns or expressions by which the first N rows will be taken |
Limit | rows limit |
Limit
Limit on the number of rows.
Attribute | Description |
---|---|
Limit | limit value |
Offset
Offset, allowing to skip the first N elements of a given set of rows.
Attribute | Description |
---|---|
Offset | offset value |
Union
Concatenate the results of two or more subqueries into a single row set.
Iterator
Iterates through a given set of rows. Typically uses a precompute as an argument.
PartitionByKey
Partitioning by key. Typically uses a precompute.
Connection
Data dependencies between stages.

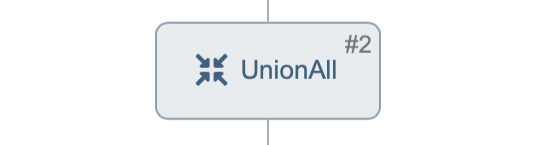

UI representation
Each stage is executed as a certain number of tasks. For example, a reading stage may be executed in N tasks, where N is the number of table shards. The method of transferring data between stages depends on the type of connection. Below is a description of different connections.
UnionAll
Combines the results of all producer stage tasks and sends them as a single result to a single consumer stage task.
Merge
This is a special case of UnionAll
. The results of the producer stage are sorted by a specified set of columns and merged into a result that is also sorted.
Broadcast
Sends the result of a single producer stage task to all consumer stage tasks.
Map
Implements 1-to-1 relationships between tasks of stages, the producer and consumer stages should have the same number of tasks.
HashShuffle
Sends the results of producer stage tasks to consumer stage tasks based on a certain rule for specified columns. The rule is defined in the code, but the list of columns is specified in the connection.
ResultSet
The query execution result.
UI representation
Precompute
Materialized intermediate result.

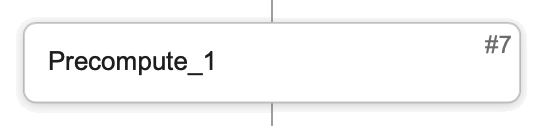

UI representation
Stages that depend on precomputes should be executed after the precompute has been completed.
